Helical Drilling
The five-axis laser rotary cutting and drilling machine, equipped with a femtosecond laser and a self-developed laser rotary cutting and drilling system, can drill holes with large pit-depth-to-diameter ratios (≥15:1) and with positive/negative or zero taper. This machine is ideal for high-precision drilling in 3C electronics, molds, automotive, and scientific research fields. Compatible materials include super-hard materials, ceramics, metals, and composites.
X/Y/Z Axis Travel
420/580/480 mm
A Axis Rated/Max.Speed
100/200 rpm
C Axis Rated/Max.Speed
150/300 rpm
Processing Range
Φ400x350 mm
Features
Full closed-loop control ensures high positioning accuracy and rapid dynamic response.
The bed is made of natural marble, offering a stable structure, excellent rigidity, high accuracy and strong reliability.
Modular design allows for replacement of rotary cutting modules.
Direct-drive AC-axis indexing structure delivers high indexing precision and dynamic performance.
Dedicated CAM software controls rotary cutting.
Optional dual air-blowing function for quick switching of auxiliary gases, enabling machining of various materials.
Samples
3mm High Temperature Alloys
3mm Sic
0.4mm Ceramic Materials
304 Stainless Steel
Applications

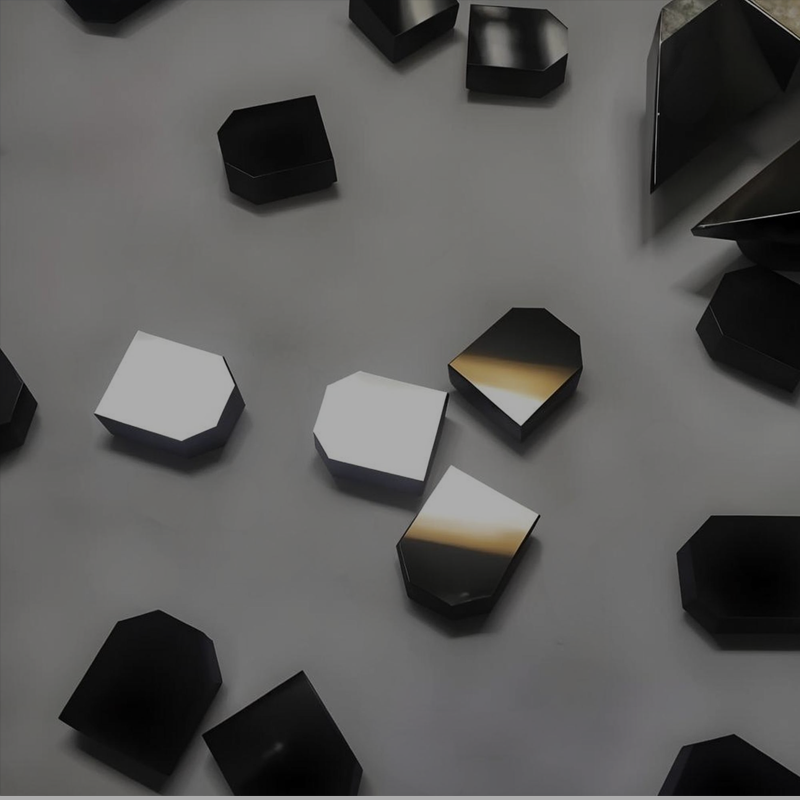

PCD
CBN
Carbide
Special Ceramics

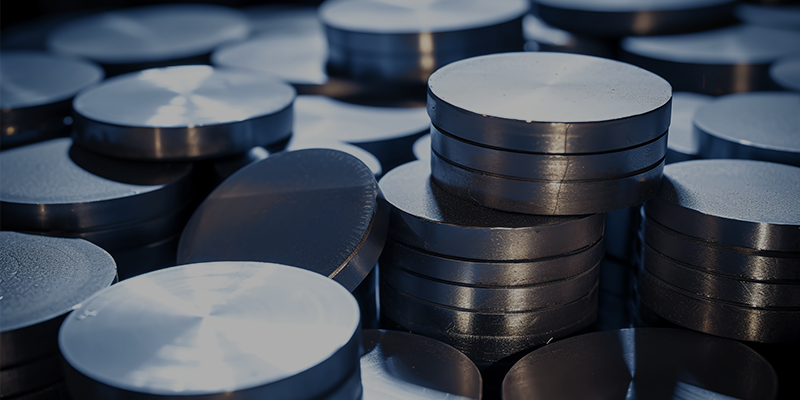

Others
Specifications
Travel
X Asix (Left and right along the sliding palte)
420mm
Y Axis(Forward and backward the workbench)
580mm
Z Axis(Up and down the laser head)
480mm
Workbench
C Axis workbench Dimensions
320mm
A Axis Rated/Max.Speed
100/200rpm
C Axis Rated/Max.Speed
150/300rpm
C-axis maximum load bearing capacity of table
20kg
Accuracy
Positioning Accuracy(X/Y/Z)
0.008mm
Positioning Accuracy(B/C)
8″
Repeat positioning Accuracy(X/Y/Z)
0.005mm
Repeat positioning Accuracy(B/C)
5″
Processing Range
Maximum workpiece size (diameter x height)
Φ400x350mm
Machine Dimension
Floor Space(L*W*H)
4000x3000x4500 mm
Weight
1200kg
